Avtron AV20 Optical Incremental Encoder

share

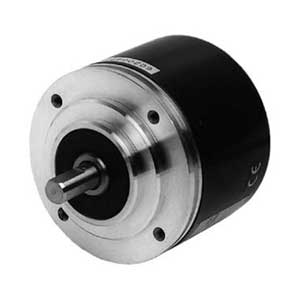

Avtron AV20 Optical Incremental Encoder
Manufacturer: Avtron

AV25 incremental quadrature rotary encoders fit a vast array of applications, from coupled AC and DC motor shafts, servos, conveyors, and most any machine. The solid aluminum housing, and stainless steel shaft offer increased durability in tough environments. Also available: AV20 encoders for 2.0" flanges and AV45 for 85mm flanges.

Avtron rotary encoders have superior shaft seals and bearings that stay sealed to keep contaminants out, through temperature cycling and liquid sprays. AV25 encoder seals are protected by mechanical barriers to prevent flexing or failure. Avtron’s superior bearings permit much larger side and axial loads for pulley and belt applications, and feature synthetic lubricants for even longer life in all applications.

More+
Features Applications Model Document
  • Shaft Sizes Include 1/4", 3/8", and 10mm
  • Up to 5000 PPR
  • Wide-Gap Technology: Up to 8X larger gap between sensor and rotor
  • Directly Replaces H25, HA525, HA625, HC525, HC625, HR525, HR625, H42 and Many Other Standard 2.5" Encoders
  • Industry Standard Face or Flange Mounting
  • All-digital design, no trim pots or adjustments for longer life
  • Advanced sensor technology
  • Superior bearings with synthetic lubricant for longer life
  • No extra charge for signal complements and marker pulse
  • More than 2X the axial and side load capability of the competition
  • Superior line drivers withstand short circuits and reverse voltage wiring errors.
  • General
  • Food & Beverage
Mfr. Part No. Description
AV20 2" Flange Mount, Light Mill Duty, Solid Shaft, IP65
