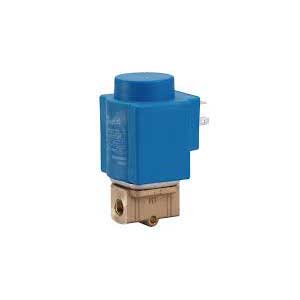

Danfoss EV210B Direct-operated 2/2-way solenoid valve

share
Danfoss EV210B Direct-operated 2/2-way solenoid valve
Manufacturer: Danfoss

EV210B covers a wide range of direct-operated 2/2-way solenoid valves for universal use.

EV210B is a very robust valve program with high performance and can be used in all kind of tough working conditions in demanding industrial applications such as control and closage.

More+
Features Model Document
  • For water, oil, compressed air and similar neutral media.
  • Flow range: 0 – 8 m3
  • Differential pressure: 0 – 30 bar
  • Media temperature: -30 – 140 °C
  • Ambient temperature: Up to 80 °C
  • Coil enclosure : Up to IP67
  • Tread connections: G 1/8 – G 1
  • DN 1.5 – 25
  • Viscosity: Up to 50 cSt
  • The valves can be used for vacuum
  • EV210B covers a wide range of direct-operated 2/2-way solenoid valves for universal use.
  • EV210B is a very robust valve program with high performance and can be used in all kind of tough working conditions in demanding industrial applications such as control and closage.
  • EV210B brass version for water, oil, compressed air and similar neutral media
  • EV210B stainless steel version for neutral and aggressive liquids and gasses
Mfr. Part No. Description
032U6501 Direct-operated, N C, NPT 1/8, 1,50 mm, FKM, 0 - 20 bar
032U6511 Direct-operated, N O, NPT 1/4, 3,00 mm, FKM, 0 - 6 bar
032U6565 Direct-operated, N C, NPT 3/8, 6,00 mm, FKM, 0 - 1,2 bar
032U6571 Direct-operated, N O, NPT 1/4, 3,20 mm, PTFE, 0 - 12 bar
032U5705 Direct-operated, N C, G 1/8, 3,00 mm, EPDM, 0 - 30 bar
032U5710 Direct-operated, N C, G 1/4, 3,00 mm, FKM, 0 - 30 bar
032U5805 Direct-operated, N C, G 3/8, 3,00 mm, NBR, 0 - 10 bar
032U3609 Direct-operated, N C, G 3/8, 8,00 mm, EPDM, 0 - 2,5 bar
032U3611 Direct-operated, N C, G 3/8, 10,00 mm, EPDM, 0 - 1,6 bar
032U3613 Direct-operated, N C, G 3/8, 15,00 mm, EPDM, 0 - 0,45 bar
032U3615 Direct-operated, N C, G 1/2, 8,00 mm, EPDM, 0 - 3 bar
032U3616 Direct-operated, N C, G 1/2, 8,00 mm, FKM, 0 - 3 bar
032U3618 Direct-operated, N C, G 1/2, 10,00 mm, FKM, 0 - 1,6 bar
032U3620 Direct-operated, N C, G 1/2, 15,00 mm, FKM, 0 - 0,45 bar
