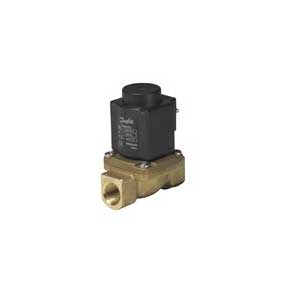

Danfoss EV225B Servo-operated 2/2-way solenoid valve for steam

share
Danfoss EV225B Servo-operated 2/2-way solenoid valve for steam
Manufacturer: Danfoss

EV225B is a servo-operated 2/2-way solenoid valve for use in steam application.

The design is based on a PTFE diaphragm concept, ensuring high reliable function even in connection with contaminated steam.

Each valve body is made of dezincification resistant brass and the valve seats are made of stainless steel. This ensures a long life even in when used with highly aggressive steam.

Coil type BR can be used on EV225B.

More+
Features Model
  • Specifically designed for steam applications,160 °C or 185 °C
  • Flow range: 0.9 – 6.0 m3/h
  • Differential pressure: 0.2 – 10 bar
  • Media temperature from 0 – 185 °C
  • Ambient temperature: up to 40 °C
  • Coil enclosure: up to IP65
  • Thread connections: from G 1/4 to G 1
  • DN 6 – 25
  • ISO 228/1 or UL listed version with NPT for North America (EVSIS/UL)
Mfr. Part No. Description
032U3689 Servo-operated (diaphragm), N C, NPT 1/4, 6,00 mm, PTFE, 0,2 - 10 bar
032U3693 Servo-operated (diaphragm), N C, NPT 3/4, 20,00 mm, PTFE, 0,2 - 10 bar
032U3694 Servo-operated (diaphragm), N C, NPT 1, 25,00 mm, PTFE, 0,2 - 10 bar
032U3802 Servo-operated (diaphragm), N C, G 1/4, 6,00 mm, PTFE, 0,2 - 10 bar
032U3803 Servo-operated (diaphragm), N C, G 3/8, 10,00 mm, PTFE, 0,2 - 10 bar
032U3804 Servo-operated (diaphragm), N C, G 1/2, 10,00 mm, PTFE, 0,2 - 10 bar
032U380402 Servo-operated (diaphragm), N C, G 1/2, 10,00 mm, PTFE, 0,2 - 10 bar
032U380416 Servo-operated (diaphragm), N C, G 1/2, 10,00 mm, PTFE, 0,2 - 10 bar
032U380420 Servo-operated (diaphragm), N C, G 1/2, 10,00 mm, PTFE, 0,2 - 10 bar
032U380429 Servo-operated (diaphragm), N C, G 1/2, 10,00 mm, PTFE, 0,2 - 10 bar
032U380431 Servo-operated (diaphragm), N C, G 1/2, 10,00 mm, PTFE, 0,2 - 10 bar
032U3805 Servo-operated (diaphragm), N C, G 1/2, 15,00 mm, PTFE, 0,2 - 10 bar
032U380502 Servo-operated (diaphragm), N C, G 1/2, 15,00 mm, PTFE, 0,2 - 10 bar
032U380516 Servo-operated (diaphragm), N C, G 1/2, 15,00 mm, PTFE, 0,2 - 10 bar
032U380520 Servo-operated (diaphragm), N C, G 1/2, 15,00 mm, PTFE, 0,2 - 10 bar
032U380529 Servo-operated (diaphragm), N C, G 1/2, 15,00 mm, PTFE, 0,2 - 10 bar
032U380531 Servo-operated (diaphragm), N C, G 1/2, 15,00 mm, PTFE, 0,2 - 10 bar
