Dynapar EC23 Incremental Encoder

share
Dynapar EC23 Incremental Encoder
Manufacturer: Dynapar

The Series EC23 is a high resolution, optical incremental encoder designed for light industrial and commercial applications. A standard Size 23 (2.3" dia.), the E23 is ideal for machine and equipment designs with limited space and high performance requirements.

A pre-wired cable or terminal screw connections are included with either servo clip or face mounting options.

Its bidirectional and optional marker pulse, current sink or differential line driver outputs are compatible with most electronic counters, instruments, PLC’s, robot controls, CNC’s, and industrial computers. The EC23 is mechanically interchangeable with the all popular Size 23 encoders.

More+
Features Applications Model Document
  • Compact Size 23 encoder
  • Up to 10000 PPR with optional marker pulse
  • Economical high performance
  • Motor mounted feedback for servo systems
  • Assembly machines
  • Robotics and material handling
  • Printers, X/Y plotters, and phototypesetters
  • Semiconductor I.C. bonders
  • Medical diagnostic equipment (X-ray & CAT scanners)
  • Position and/or velocity input for CNC’s,
  • PLC’s, motion controllers, etc.
Mfr. Part No. Description
EC23 Size 23 Enclosed, Compact Encoder; Optical; IP54

Inquiry

Your Name: * name not null!
Email: * name not null!
Additional Information: * name not null!
Add more information ( Optional )
Code: *
click

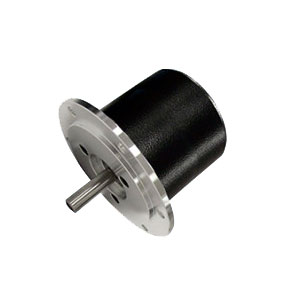

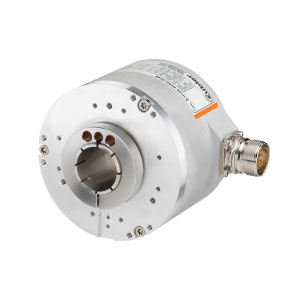

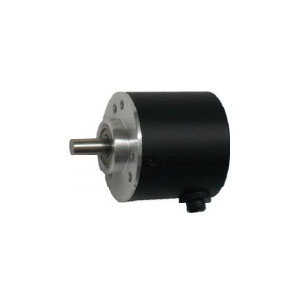

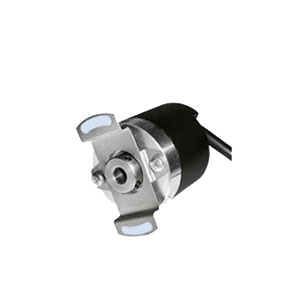

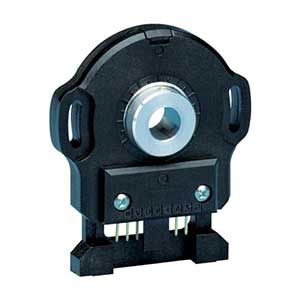

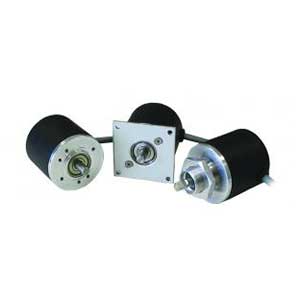

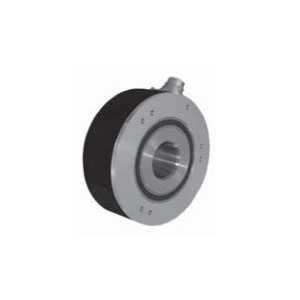

SIMILAR PRODUCT
