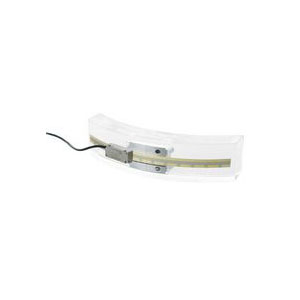

Heidenhain ERA 8000 series Angle encoder without integral bearing

Scanning head: AK ERA 8480

Interface: 1 VPP

Cutoff frequency –3 dB: ≥ 350 kHz

Electrical connection:

Cable 1 m, with M23 coupling (12-pin)

Cable length:≤ 150 m (with HEIDENHAIN cable)

Voltage supply: 5 V DC ± 0.25 V

Current requirement:< 100 mA (without load)

Vibration 55 to 2 000 Hz Shock 6 ms:

≤ 200 m/s2 (EN 60 068-2-6)

≤ 1 000 m/s2 (EN 60 068-2-27)

Operating temperature: -10 °C to 80 °C

Weight (approx.): 20 g (without cable)
