Honeywell FSA Series force sensor

share

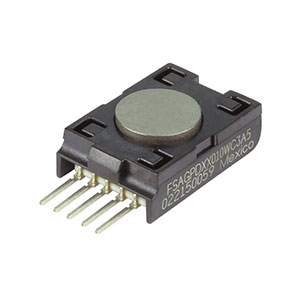

Honeywell FSA Series force sensor
Manufacturer: Honeywell

The FSA Series are piezoresistive-based force sensors offering a ratiometric analog or digital output for reading force over the specified full scale force span and temperature range. They are fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an on-board Application Specific Integrated Circuit (ASIC). Direct mechanical coupling allows for easy interface with the sensor, coupling with tubing, membrane or a plunger, providing repeatable performance and a reliable mechanical interface to the application. The package also provides excellent corrosion resistance and isolation to external package stress. All products are designed and manufactured according to ISO 9001 standards.

More+
Features Applications Model Document
  • Wide variety of force ranges
  • Newton (N): 2, 5, 7.5, 10, 15, 20, 25
  • pound (lb): 1, 1.5, 2, 3, 5
  • gram (g): 200, 500, 750
  • kilogram (kg): 1, 2
  • Total Error Band: ±5 %FSS
  • Accuracy: ±3 %FSS
  • Ratiometric analog or SPI- or I2C-compatible digital output
  • Fully calibrated and temperature compensated over a temperature range of 5 °C to 50 °C [41 °F to 122 °F]
  • Overforce: 6804 g [15 lb]
  • Supply voltage: 3.3 Vdc typ. or 5.0 Vdc typ.
  • Low power consumption: 13 mW (analog) or 20 mW (digital)
  • Excellent part-to-part repeatability
  • Enhanced reliability
  • Stable interface plunger
  • Internal diagnostic functions available
  • REACH and RoHS compliant

Medical:

  • Ambulatory non-invasive pump pressure
  • Infusion pumps
  • Kidney dialysis machines
  • Occlusion detection

Industrial:

  • Load and compression sensing
  • Variable tension control
Mfr. Part No. Description
FSAGPDXX001RCAB5 0 lb to 1 lb force range, compression force type, analog output, 5% to 95% transfer function
FSAGPDXX005LCSB5 0 N to 5 N force range, compression force type, digital SPI, 5% to 95% transfer function
FSAGPDXX010WCAA5 0 N to 10 N force range, compression force type, analog output, 10% to 90% transfer function
FSAGPDXX1.5LC5B5 0 lb to 1.5 lb force range, compression force type, digital I2C, 5% to 95% transfer function
FSAGPNXX003LCAC5 0 lb to 3 lb force range, compression force type, analog output, 10% to 90% transfer function
FSAGPNXX010WC2C3 0 N to 10 N force range, compression force type, digital I2C, 20% to 80% transfer function
