Lenze 9400 Series Servo Drive

share

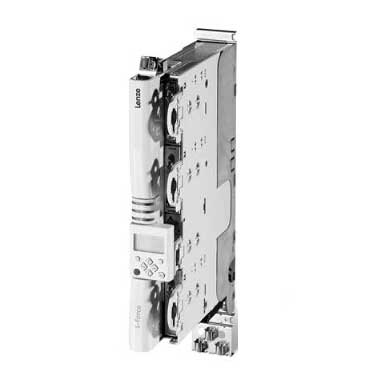

Lenze 9400 Series Servo Drive
Manufacturer: Lenze

The Servo Drives 9400 HighLine feature intelligence in the drive and are therefore designed for decentralised motion control applications as well as for centralised control topologies.Lenze provides pre-programmed technology applications, e.g. table positioning,electronic gearbox and synchronism with mark registration for solving various applications simply by parameter setting.The function block editor integrated into the L-force Engineer HighLevel(PC setup tool) enables you to adapt the functions in an easy and flexible manner. The High Line Servo Drive comes with the CAN open fieldbus,conventional I/Os, diagnostic LEDs, a diagnostic interface, a resolver and a universal encoder input on board.In addition, the HighLine is equipped with two extension slots for communication or extension modules as well as one slot each for a memory module and a safety module,so that the drive can be optimally adapted to your requirements.

More+
Features Applications Model
  • Freely assignable user menu
  • Free function block interconnection with extensive function library
  • Parameter change-over
  • DC brake function
  • Brake management for brake control with low rate of wear
  • Flying restart circuit
  • S-shaped ramps for smooth acceleration
  • PID controller
  • Speed actuating drive
  • Torque actuating drive
  • Electronic gearbox
  • Synchronism with mark registration
  • Table positioning
  • Positioning sequence control
Mfr. Part No. Description
E94AS E0024 Typical motor power 0.37kW
E94AS E0044 Typical motor power 1.50kW
E94AS E0074 Typical motor power 3.00kW
E94AS E0028 Typical motor power 0.37kW
E94AS E0029 Typical motor power 0.37kW
E94AS E0030 Typical motor power 0.37kW
E94AS E0031 Typical motor power 0.37kW
E94AS E0032 Typical motor power 0.37kW
E94AS E0033 Typical motor power 0.37kW
E94AS E0034 Typical motor power 0.37kW
E94AS E0035 Typical motor power 0.37kW
E94AS E0036 Typical motor power 0.37kW
