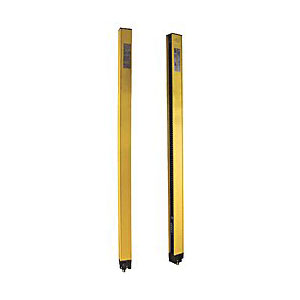

Sick C4000 Palletizer Safety Light Curtain

Manufacturer: Sick

The C4000 Palletizer safety light curtain is the innovative muting alternative for access protection during automatic material transport.

Features Applications Model

Economical to procure: only one sensor pair means costs savings during planning, design, mounting, wiring and service
Quickly placed in operation, pallets, mesh crates, etc. are recognised without programming
Very high availability due to self-teach recognition of patterns on loading with different pallets
Easily integrated : no secondary sensors necessary, only the OSSD's are implemented in the stop circuit
Safer: provides protection in areas in which there is no object, unlike conventional muting solutions.

Mfr. Part No.	Description
C40E-0703FK010/C40S-0703CD010	Advanced without extension connection, Resolution 30 mm, Protective field height 750mm
C40E-0903GK010/C40S-0903CD010	Advanced with extension connection, Resolution 30 mm, Protective field height 900mm
C40E-1004FP010/C40S-1004CD010	Standard, Resolution 40 mm, Protective field height 1050mm
C40E-1203FK010/C40S-1203CD010	Advanced without extension connection, Resolution 30 mm, Protective field height 1200mm
C40E-1303GK010/C40S-1303CD010	Advanced with extension connection, Resolution 30 mm, Protective field height 1350mm
C40E-1504FP010/C40S-1504CD010	Standard, Resolution 40 mm, Protective field height 1500mm
C40E-1603FK010/C40S-1603CD010	Advanced without extension connection, Resolution 30 mm, Protective field height 1650mm
C40E-1803GK010/C40S-1803CD010	Advanced with extension connection, Resolution 30 mm, Protective field height 1800mm
