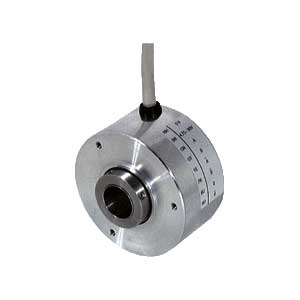

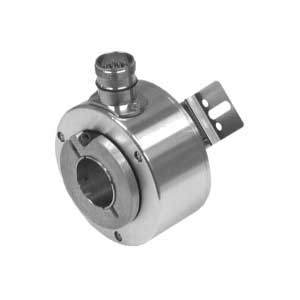

Sick DGS35 Incremental Encoder
Manufacturer: Sick

Large hollow shaft encoders for rough environmental conditions

The high resolution DGS34/35 hollow shaft Incremental encoder family is a rugged solution for heavy-duty encoder applications. With a large bore size up to 1-1/8 in or 30 mm, these are ideal for direct mounting on motor shafts.

More+
Features Applications Model
  • Incremental encoder with 3.5" diameter
  • Line count: 120 … 16.384
  • Choice of various electric interfaces: TTL / RS-422, HTL/push pull or open collector
  • High enclosure rating: IP66
  • Through hollow shaft for shaft diameters of up to 30mm or 1-1/8"
  • Connection via cable outlet or 10-pin MIL connector
  • Crane winch
  • Stage and theater machinery
  • Steel industry
  • Elevator
  • Packaging industry
Mfr. Part No. Description
DGS35-1H408192 5 V, TTL, Male connector, MS, 10-pin, radial
DGS35-1HK00360 5 V, TTL, Cable, radial, 1.5 m
DGS35-1L408192 5 V, TTL, Male connector, MS, 10-pin, radial
DGS35-1LK00360 5 V, TTL, Cable, radial, 1.5 m
DGS35-5H408192 8 ... 24 V, HTL, Male connector, MS, 10-pin, radial
DGS35-5HK00360 8 ... 24 V, HTL, Cable, radial, 1.5 m
DGS35-5L408192 8 ... 24 V, HTL, Male connector, MS, 10-pin, radial
DGS35-5LK00360 8 ... 24 V, HTL, Cable, radial, 1.5 m
DGS35-7H408192 5 ... 15 V, HTL/TTL, Male connector, MS, 10-pin, radial
DGS35-7HK00360 5 ... 15 V, HTL/TTL, Cable, radial, 1.5 m
DGS35-7L408192 5 ... 15 V, HTL/TTL, Male connector, MS, 10-pin, radial
DGS35-7LK00360 5 ... 15 V, HTL/TTL, Cable, radial, 1.5 m
