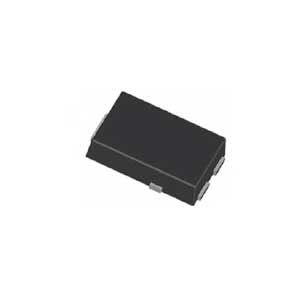

Vishay ESH2PB/ESH2PD High Current Density Surface Mount Ultrafast Rectifier

Manufacturer: Vishay

Case: DO-220AA (SMP)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant, and automotive grade
Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix meets JESD 201 class 2 whisker test
Polarity: Color band denotes the cathode end

More+

Features Applications Model

Very low profile - typical height of 1.0 mm
Ideal for automated placement
Glass passivated pallet chip junction
Ultrafast recovery times for high frequency
Low forward voltage drop, low power losses
Low thermal resistance
Meets MSL level 1 per J-STD-020, LF maximum peak of 260 °C
AEC-Q101 qualified

For use in secondary rectification and freewheeling for ultrafast switching speeds of AC/DC and DC/DC converters in high temperature for both consumer and automotive applications.

Mfr. Part No.	Description

Vishay ESH2PB/ESH2PD High Current Density Surface Mount Ultrafast Rectifier
