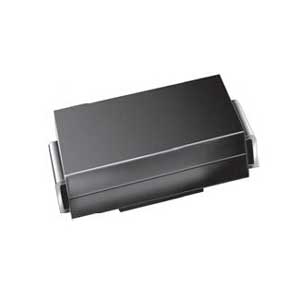

Vishay RGF1A/RGF1M Surface Mount Glass Passivated Junction Fast Switching Rectifier

Manufacturer: Vishay

Case: DO-214BA, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix meets JESD 201 class 2 whisker test
Polarity: Two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating

More+

Features Applications Model

Superectifier structure for high reliability condition
Ideal for automated placement
Fast switching for high efficiency
Low leakage current
High forward surge capability
Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C
AEC-Q101 qualified

For use in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication.

Mfr. Part No.	Description

Vishay RGF1A/RGF1M Surface Mount Glass Passivated Junction Fast Switching Rectifier
